Type: 2D mode

1. Product functions

1. Good operation interface, easy to operate

2. The relative method of measuring the software eliminates the error caused by PCB deformation, and can compensate for the influence of green oil and copper thickness on the measurement result

3. Granite platform, wear-resistant, non-deformed, not easy to generate static electricity

4. The sealing grating scale is used as the measurement reference to calibrate the measurement results immediately

5. Convenient for measuring large-size PCBs

6. The design life of the equipment is more than 10 years

7. The laser generator with automatic standby protection has a life delay of several times

Second, product features

1. It comes with a fully enclosed precision grating scale as the measurement standard, real-time calibration of measurement results, full closed-loop feedback, high precision. Measurement does not rely on easy wear screw motors and other transmission systems, good accuracy retention, low failure rate.

2. Using the relative measurement method, eliminate the error of PCB deformation, and compensate for the error caused by green oil and copper foil thickness.

3. Large measuring range, can directly measure double panel, can also measure other than solder paste such as V-Cut groove depth, components, BGA solder ball height, etc.

4. Granite measuring platform, wear-resistant, not easy to deform, no static electricity, can measure large PCB area.

5. Integrated solid base, good rigidity. Adjustable horizontal shock absorbing feet.

6. Large range of stepless zoom optical lens, high magnification, suitable for large pads to 0201, 01005, 0.2mm fine pitch IC, BGA, CSP, etc., strong flexibility.

7. When the measuring laser beam is aligned to the measured surface, the optical lens automatically focuses to the measured surface. The focal length remains unchanged automatically after zooming.

8. Laser generator with automatic standby protection, life delay several times. Laser brightness adjustment is convenient.

9. Color camera, easy to identify various features on the PCB board. Photography and video recording are possible. Hot-swappable USB interface.

10. Long-life LED lighting, color switchable suitable for PCB board measurement of various colors. Easy lighting brightness adjustment.

11. Monitor and analyze several production lines at the same time. With group management and one-key switching of tested products, each production line is counted separately, and each product can have independent judgment criteria and option settings, and automatically judge whether it is qualified or not.

12. Real-time refreshed statistical parameters and charts, with average value, standard deviation, Cpk, defective rate, distribution chart, trend chart, X bar-R control chart and other automatic calculation functions, flexible setting of statistical time period, can automatically generate and print complete reports.

13. Optional function of measuring length, width, angle, proportion, side length, area, coverage, volume, weight and automatic judgment.

14. The original data can be exported in Excel or text format.

15. Automatic saving function, sudden power failure without data loss. Using a general-purpose computer, installation does not require hardware changes, and it is easy to replace.

16. Simple operation and software interface, fast measurement speed.

Third, product parameters

1. Measuring principle: relative method, grating ruler reference

2. Resolution: 0.001 mm

3. Absolute accuracy: ≤0.003%

4. Repeatability: ≤0.01%

5. Green oil and copper foil error compensation: support

6. PCB deformation error elimination: support

7. Measuring range: 30 mm

8. Optical magnification: 50 - 360X continuous stepless magnification

9. Field of view: 10 x 7.5 - 1.2 x 0.8 mm adjustable as needed

10. Maximum capacity: PCB400 x 600 mm

11. Minimum measurable element: 0201, 01005, 0.2mm fine pitch IC, BGA/CSP

12. Lighting light color: white, green, blue and full off switchable

13. Lighting source life: ≥ 100 million hours

14. Laser wavelength and power: 650nm, micropower< 5mW

16. Laser life: 5-10 times longer than lasers without standby function

17. Video output interface: USB

18. Video resolution: 640 x 480

19. Total video pixels: 300 million

20. Video type: color image

21. Multi-production line sharing: support

22. SPC statistical function: bad judgment, average, standard deviation, Cpk, defective rate, distribution chart, trend chart, X bar-R control chart, etc

23. Power supply and power consumption: power supply through USB interface, 2.5W small power consumption

24. Hot Swap: Yes

25. Weight and shape: 26kg, W600 x D550 x H650 mm

26. Hardware: CPU: Intel P4 1.4G or more 2G or more recommended) Memory: 256M or more 512M or more recommended) Port: 1 or more COM port, 2 or more USB2.0 interface graphics cards: mainstream brands, and Direct9, 32M or more video memory.

27. Operating system: Microsoft Windows XP

4. Product pictures

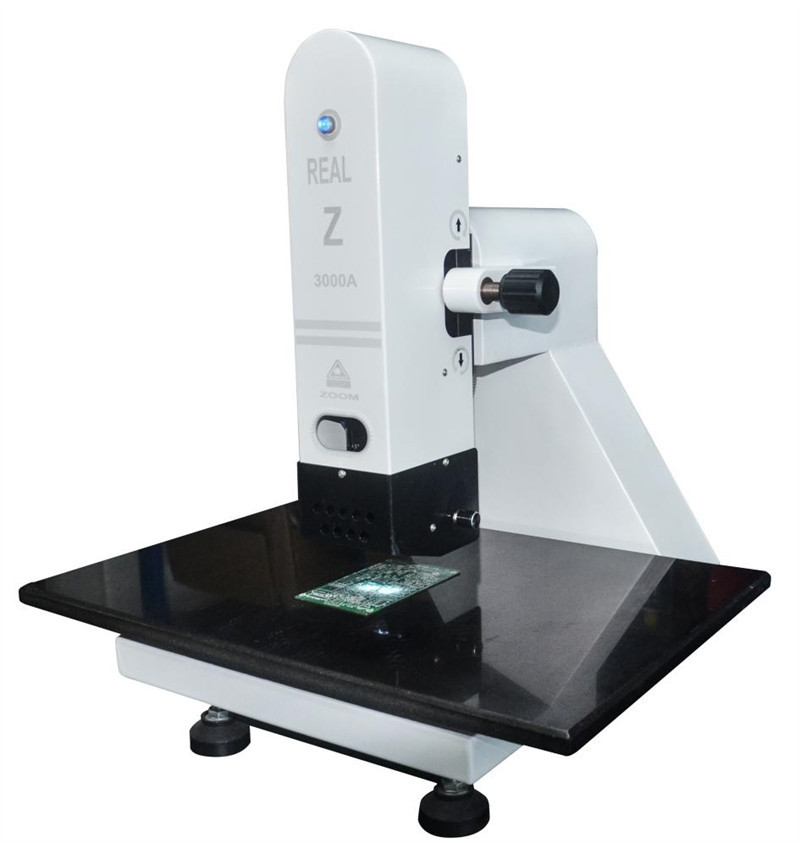

Instrument master diagram

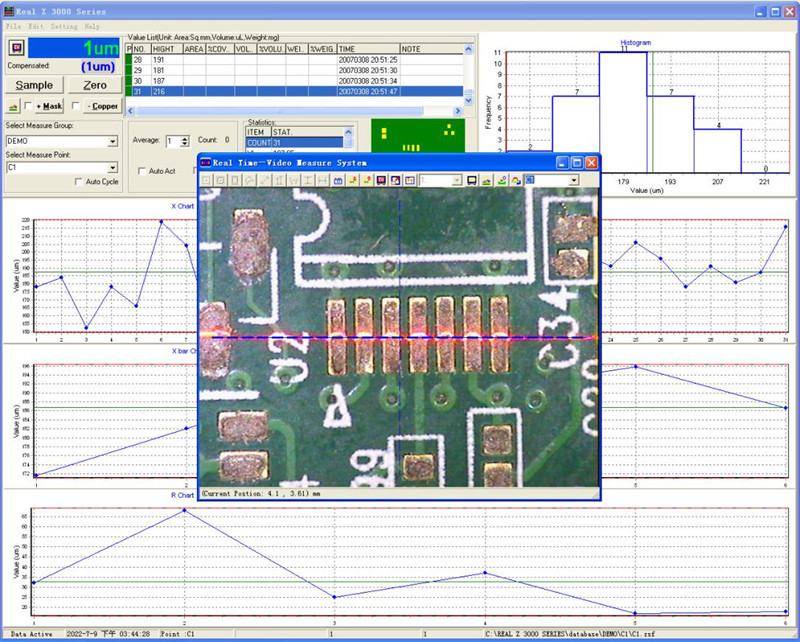

REAL Z 3000 data analysis interface

The main interface of the software

 REAL Z 3000 measurement analysis report
