▍Product Features

The fifth generation of Bathrive® brand FBT
series——

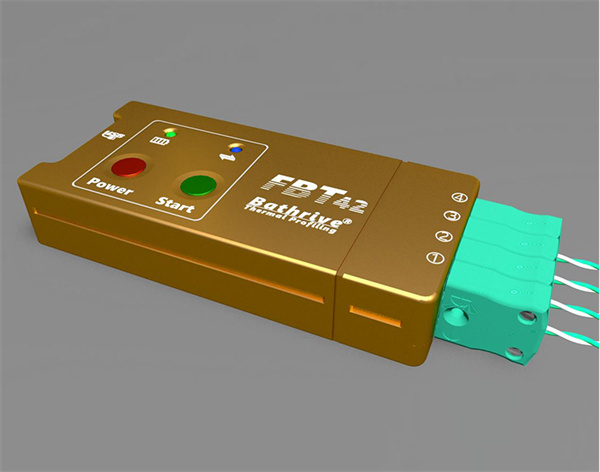

The Bathrive® FBT42 instrument belongs to the 5th generation of the Bathrive® brand FBT series products. The FBT series products are one of the most widely used products in the field of temperature measurement by Braide, which is mainly due to the excellent comprehensive performance of the Bathrive-FBT series products. The machine is multi-purpose, with excellent data analysis and editing methods. The application scenarios cover most of the temperature measurement fields. The use experience far exceeds that of similar products at home and abroad. There are many models of FBT series products, and the space is limited so we will not list them one by one. For more detailed product information, please contact us. Contact local suppliers or log on to the official website www.bathrive.com





Adopt space-level ultra-powerful 32-bit MCU
——

The 32-bit MCU with aerospace-grade ultra-super computing power makes the instrument only 1000Ma battery can provide more than 30 hours of ultra-long battery life, and the maximum number of data storage is up to 255 groups (support power-off storage)





One - key automatic curve optimization function——

Modular software design, independent process library, product library, furnace library, great convenience for users to systematically manage temperature curve files, one-key automatic curve optimization function, millions of temperature curve data models, 3 optimization modes , can quickly recommend the best furnace setting parameters for the user, greatly reducing the time for adjusting the oven.







▍Typical application fields of products

Electronic manufacturing, semiconductor, photovoltaic, spraying, brazing, new energy, metallurgy, glue curing (vertical furnace), food baking, etc.



semiconductor

electronics manufacturing

Photovoltaic

spraying

Brazing

new energy

metallurgy

food baking



▍Main function of the product

Ultra   -small size, built-in 32-bit high-speed processing chip with super computing power, making temperature measurement handy, and the design service life is more than 10 years

● High measurement accuracy +/-0.5°C, fast speed, the fastest 0.01 seconds/time, easily meet the challenges of various temperature measurement fields

● Data transmission mode, high-speed USB data transmission and charging are integrated, the battery is fully charged while transmitting data, no additional charging is required

● 3 trigger start modes and 4 trigger stop modes can be optimized and matched at will to realize intelligent start and stop without manual intervention

● Built-in 1000MA high temperature resistant polymer rechargeable battery for power supply, can work continuously for 30 hours on a single charge (related to sampling frequency and number of channels)

● As many as 100 sets of curve overlapping analysis, support temperature, furnace, process and other data export, furnace temperature data import

● A maximum of 255 sets of temperature curve data can be saved

● Complete firmware information prompts, users can check the use record, status and hardware configuration information of the instrument at any time

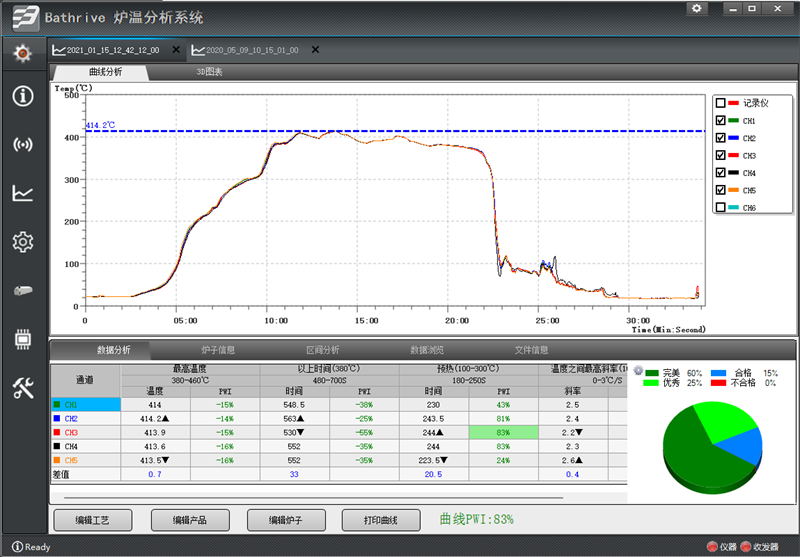

● Intelligent PWI index analysis, floating PWI, CPK indicators can visually display curve analysis results

● Manual and automatic curve optimization functions can effectively shorten the time for adjusting the oven. The data model of nearly one million temperature curves can provide users with the best recommended values for furnace temperature and chain speed. With the blessing of this function, novices can easily and quickly complete the oven temperature setting

● The instrument time can be set or calibrated to be synchronized with the computer

● Powerful curve editing functions, including curve clipping, curve alignment, curve moving and many other curve editing methods, make curve editing become arbitrary

● Curve tolerance zone display makes the reasonable variation range of the curve clear at a glance

● Highlight the analysis section, so that the curve sections corresponding to all analysis data items are highlighted, and you can simply and directly see the one-to-one correspondence between the analysis data and each section of the curve without other auxiliary means

● The curve can be segmented and analyzed and the analysis data of each segment can be issued

● CPK and SPC quality analysis reports of curves can be issued

● Provide local MES data interface, conveniently share curve data to customer MES system

● Support data batch download, single download

● Multi-level operation authority management

▍Instrument technical specifications :

Instrument model: Bathrive_FBT42
Number of channels: 4
Instrument size: 103 * 47 * 20 (mm)
Measurement accuracy: ±0.5°C
Temperature resolution: 0.1°C S
Sampling speed: 100 times/second~1 hour/time
Storage space: 128Mb
storage group Number: 255 groups
Battery capacity: 1000MA explosion-proof and high temperature resistant battery Instrument
start mode: temperature, time, button
Instrument stop mode: temperature, time, button, communication
instrument Working temperature: -40~85℃
Instrument temperature measurement range: -200~1370 ℃
Thermocouple type: K type
Communication port: USB
Software language: Simplified Chinese, Traditional Chinese, English

Software platform: WIN-XP, WIN7~10 (32 and 64 bit) Win-XP, 7, 10, 11 and above (32 or 64 bit system)

▍Heat insulation box

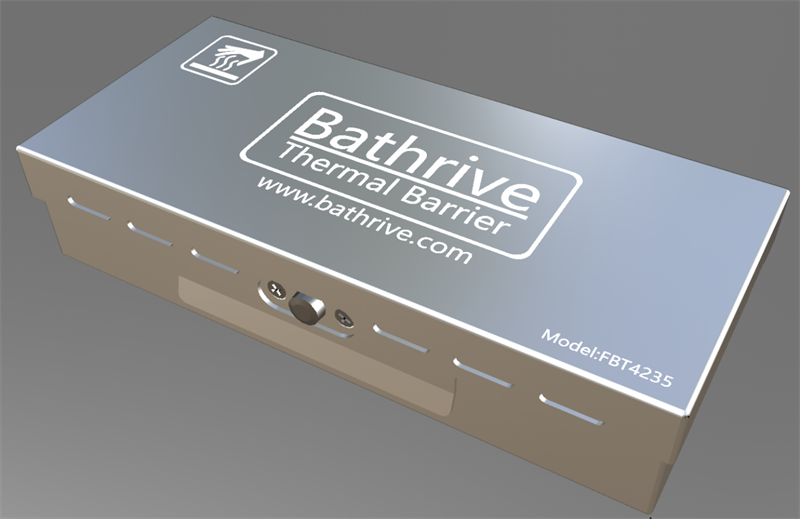

Adopting aviation-grade heat insulation technology, under the condition of certain temperature and space, the heat insulation time can be maximized, and heat insulation boxes of different specifications are equipped according to different usage scenarios

Model: FBT4235
Dimensions: 158 * 75 * 35 (mm)

Heat resistance time: 150°C 200°C 250°C 300°C

                    26 minutes 17 minutes 11 minutes 8 minutes

▍Thermocouple components

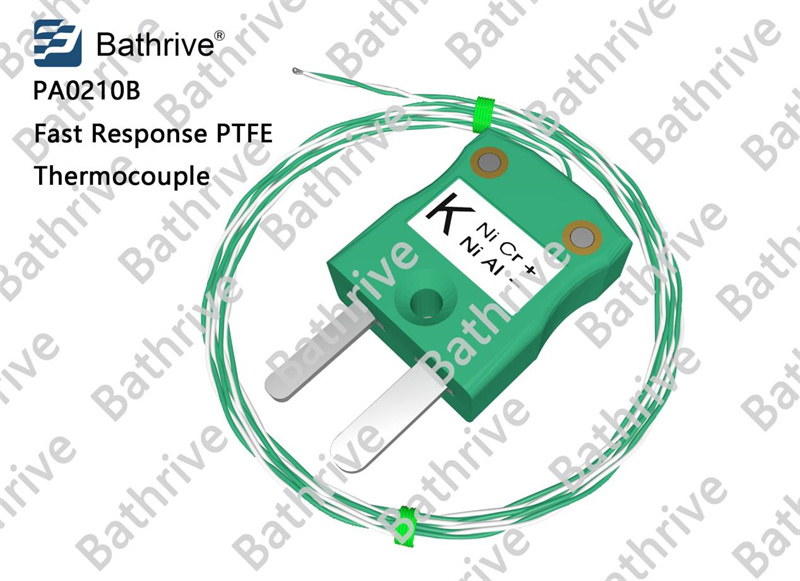

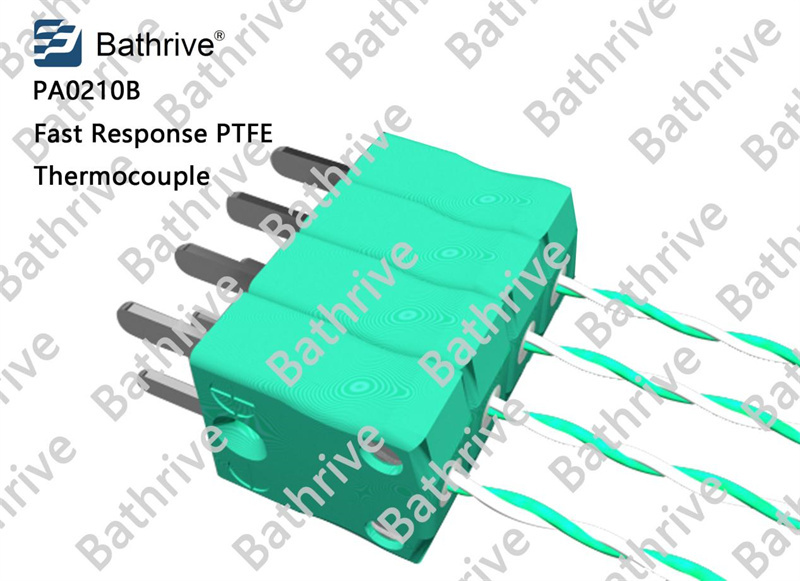

can be equipped with corresponding thermocouple components according to different usage scenarios

• FBT42 furnace temperature tester
